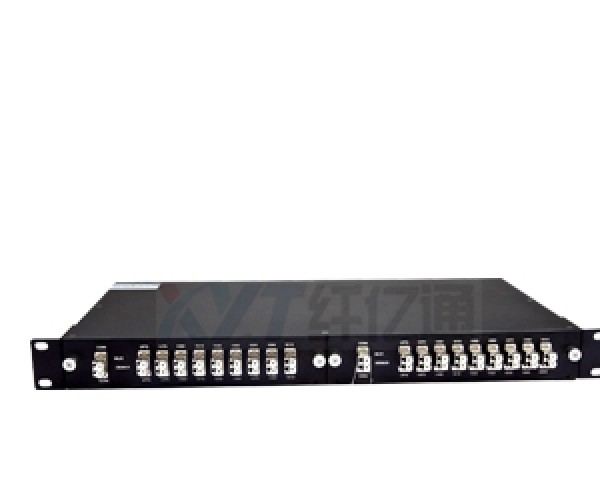

customized DWDM/OADM AWG mux demux

 - Specification -

Item	Unit	Parameters
Channel Spacing	GHz	100GHZ
Wavelength Range		C- band ITU channels
Channel Centers	nm	ITU
Channels	ch	4	24	30
Passbandwidth	nm	≥ +/- 0.13
Passband Ripple	dB	≤ 0.5
Channel Insertion Loss	dB	1.5	5	5
Isolation (adjacent channel)	dB	≥30
Isolation (non-adjacent channel)	dB	≥ 40
Polarization Dependent Loss	dB	≤ 0.2
Polarization Mode Dispersion	ps	≤ 0.2
Directivity	dB	≥ 50
Return Loss	dB	≥ 45
Optical Power Handling	mW	≤ 500
Operating Temperature Range	℃	-5 to 70
Storage Temperature Range	℃	-40 to +85
Fiber Type	NA	SMF-28e
Package dimensions	mm	L100 x W80 x H10（2CH-8CH
		L142 x W102 x H14.5（9CH-18CH）

All the specifications are based on the devices without connector

Ordering information (DWDM-B-50-4-C20-1-1-0)

Product	Frequency	Channel	1st ITU channel	Fiber  Type	Fiber Length	Connector
B=BIDI D=Dual fiber	10=100G	p>4=4 channel 8=8 channel ..... 16=16 channel 18=18 channel	C20= 1561.42 nm  C21= 1560.61 nm  …	1=Bare fiber 2=900um 3=3.0mm	1=1m 2=2m	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC

- Product Description -



        The 4-port EPON-OLT is an OLT device that follows the IEEE802.3ah and the People's Republic of China Communications Industry Standards (YD/T 1475-2006), fully supporting CTC2.0/2.1, auto discovery and being compatible with each vendor ONU.Build a highly efficient EPON solution.The 4-port EPON-OLT supports PON transmission rates of 1.25Gbps, efficient bandwidth utilization, and Ethernet business support capabilities to help operators provide reliable business quality assurance for their users.The optical ratio of 1:64 supports the hybrid network of different types of ONU, minimizing the investment of operators.The 4-port EPON-OLT uses industry-advanced technology, with powerful features and QoS assurance in the Ethernet business, with SLA and DBA support.
 - Features -



1.Point-to-point network topology, effectively collect user scattered Ethernet business, and gather at the urban area network junction point, using GE interface to connect the upper equipment, to achieve smooth interconnection with the existing network.



2.The Dynamic Bandwidth Allocation Mechanism (DBA) enables all users to more reasonably share the bandwidth of 1Gbps, achieving reliable quality of service assurance (QoS)



3.Support expansion, support three-layer exchange capability



4.4*10G optical port up, 8*1G up



5.RSTP rapidly generates tree function guarantees the redundant connectivity of OLT and the backbone network.The EAPS fast loop protection protocol achieves 50ms high reliability



6.Network coverage radius: as far as 60 km



7.FC,CE,ROHS Certification



8.Support for IGMP multicast, the effective use of broadband.Support for multicast VLAN



9.Support for IPTV, voice, and data triple playback



10.Rich OAM functions, including configuration, alarm, performance monitoring, failure isolation, and security management, and support CLI and GUI two management methods, easy to learn and use
