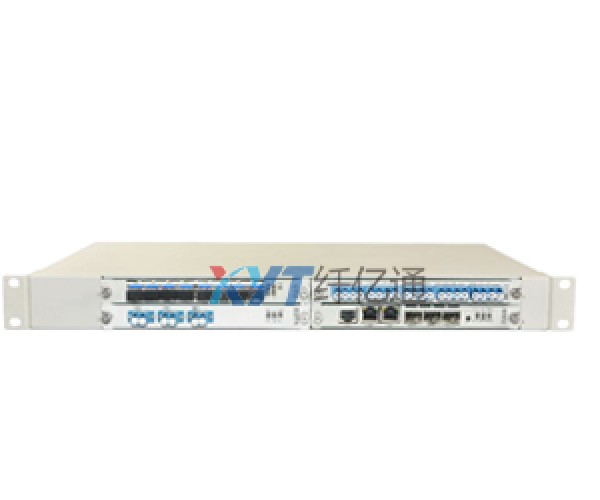

1U CWDM/DWDM Integrated Transmission System

Parameters

Technical specification

Wavelength range

Conforms ITU-I   G.694.1, ITU-T G692, ITU-T G.695 standards

Service access type

PDH 、ATM
  STM-256/STM-64/STM-16/STM-4/STM-1
  OC-768/OC-192/OC-48/OC-12/OC-3

FE、GE、10GE

FICON/ESCON/FIBER   Channel/CATV

Optical interface   transmission method

2.5Gbit service card   adopt 2R transmission mode,each channel supports transparent transmission below   the rate of 2.5Gbit / s. Adopt 3R transmission mode,each channel rate supports   155Mbit / s, 622Mbit / s, 1.25Gbit / s or 2.5Gbit / s optional, 10Gbit   service cards adopt 3R transmission mode, each channel rate supports 1.25Gbit   / s, 2.5Gbit / s, 4.25Gbit / s, 6.25Gbit / s, 8.25Gbit / s, 10Gbit / s   optional;

Physical network   topology

Point to point,   point to multipoint,chain, ring, single fiber bi-directional

Fiber type

G.652  G.655 （G.653 no advocated）

Network management   methods

CLI 、TELNET、SNMP、WEB

Mechanical   parameters

physical dimension

1U chassis：44（H）*350（D）*438（W） (mm)

weight

Full with a weight   of not more than 25 kg

Working environment

Operating   temperature

-10℃– 60℃

Relative humidity

5% – 95% no condensation

Storage environment

Ambient temperature

-40℃– 80℃

Relative humidity

5% – 95% no   condensation

Power requirements

220V AC,50Hz or -48V   DC

Safety and EMC

Conforms FCC, UL,   CE, TUV, CSA standards

Power consumption

≤60W
