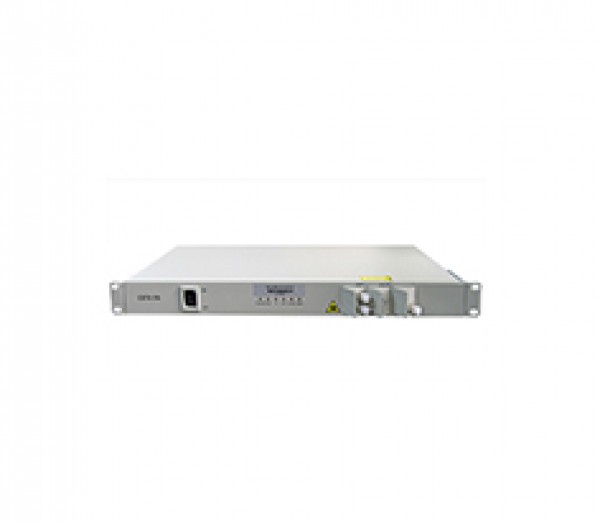

CATV-EDFA

Parameter

Unit

Min

Typ

Max

Operating Wavelength

nm

1530

1550

1560

Input Power

dBm

-3

10

Output Power

dBm

24

Noise Figure

dB

5

Input/Output Isolation

dB

30

Input/Output Return Loss

dB

60

Voltage

Rack Mount:90~260V AC,-48V DC

Module Type:5V DC

Dimension

mm

Rack Mount:(W x L x H)

482.6 x 319 x 43.6

Module Type:(W x L x H)

150 x 125 x 24

Parameter

Unit

Min

Typ

Max

 Operating Wavelength

nm

1530

1550

1565

 Input Power

2.5G or below

dBm

-6

4

10G

-10

4

Output Power

dBm

19

 Output Tunable Range

dB

6

 Noise Figure

dB

5

 Input/Output Isolation

dB

30

 Input/Output Return Loss

dB

45

XYT-EDFA

SO

X

X

XX/XX

X

Package

SO=1U rack-mount package

Amplifier Type

B=Poweramplifier

P=Preamplifier

L=Line amplifier

 Application

RW=Red-Band DWDM

CW32=C-Band 32CHDWDM

CW40=C-Band 40CHDWDM

LW=L-Band DWDM

S=Digital transmission

C=CATV

Rated output power(dBm)/Gain(dB)

XX/XX=custom

Example:

16/20=output16dBm/Gain20db

Interface Type

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC
