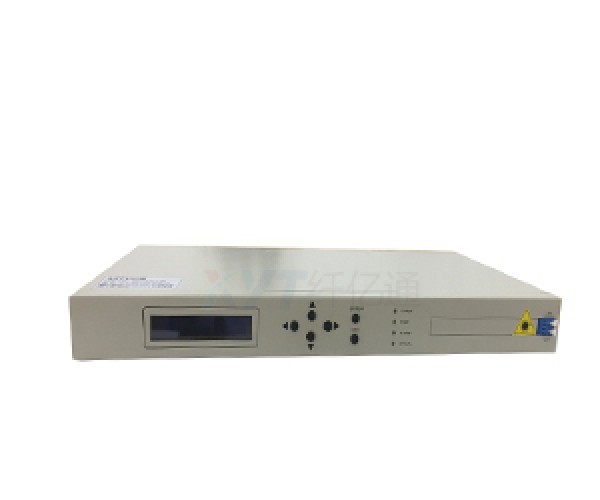

Booster Amplifier BA EDFA

Product Name

Power amplifier（BA）

Parameter

Min

Typ

Max

Unit

Operating Wavelength

16 Channel

1546

1550

1561

nm

32 Channel

1535

1562

48 Channel

1528

1568

Input power

-10

6

dBm

Gain

14

25

33

dB

Output power

21

dBm

Noise figure

5.0

dB

Input/output Isolation

30

dB

Output Pump leakage

-30

dBm

Input/output return loss

45

dB

polarization dependent loss

0.5

dB

Polarization mode dispersion

0.5

ps

Operating Temperature

-5

55

℃

Humidity

5

95

%

Storage Temperature

-40

85

℃

power consumption

30

W

Power

-48V DC or 220V AC

V

Interface

FC/UP or others

Dimension

(W x L x H)    482.6x245x43.6

mm

Product

Package

Input

Power

Output Power

Power

Supply 1

Power

Supply 2

Connector

network   management

EDFA

1:1U Chassis

2：BA

3：LA

4：PA

010:-10dBm

…

24:24dBm

1:110VAC

2:220VAC

3:110~220VAC

4:-48VDC

9:other

1:110VAC

2:220VAC

3:110~220VAC

4:-48VDC

9:Other

0：none

1;SC/PC

3:FC/PC

5:LC/PC

9:other

1：with

2：without
