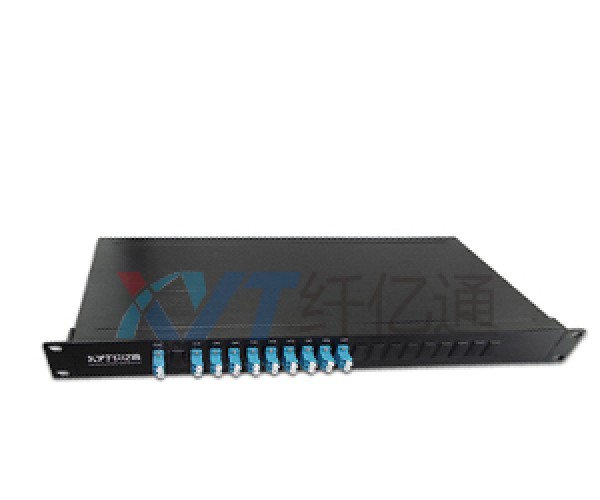

8ch DWDM/OADM mux demux
8ch DWDM/OADM mux demux

8ch DWDM/OADM mux demux

Model NO.
8ch DWDM/OADM mux demux
Quantity:

 - Specification -

ItemUnitParameters
Channel SpacingGHz100GHZ
Wavelength RangeC- band ITU channels
Channel Centers nmITU
Channels ch8
Passbandwidthnm≥ +/- 0.13
Passband RippledB≤ 0.5
Channel Insertion LossdB≤2.5
Channel EXP Insertion LossdB≤2.8
Isolation (adjacent channel)dB≥30‍‍‍‍‍
Isolation (non-adjacent channel)dB≥ 40
Polarization Dependent LossdB≤ 0.2
Polarization Mode Dispersionps≤ 0.2
Directivity dB≥ 50
Return LossdB≥ 45‍‍‍‍‍‍‍
Optical Power HandlingmW≤ 500
Operating Temperature Range℃-5 to 70
Storage Temperature Range℃-40 to +85
Fiber TypeSMF-28e
Package dimensions abs box or 1u rack chassis

All the specifications are based on the devices without connector

Ordering information (DWDM-B-50-4-C20-1-1-0)

ProductFrequencyChannel1st ITU channel

Fiber Type

Fiber Length

Connector
B=BIDI

D=Dual fiber

10=100G

4=4 channel

8=8 channel

16=16 channel

18=18 channel

C20= 1561.42 nm
 …		1=Bare fiber
2=900um

3=3.0mm

1=1m

2=2m

1=FC/APC

2=FC/PC
3=SC/APC
4=SC/PC
5=LC

Applications

DWDM System

PON Networks

CATV Links

Fiber optical amplifier

Wavelength routing

Send Message

* clear input
*

Related Products

XYT-OTN-100G
XYT-OTN-100G
Model NO. XYT-OTN-100G
200G OTN
200G OTN
Model NO. XYT-OTN-200G
1U CWDM/DWDM Integrated Transmission System
1U CWDM/DWDM Integrated Transmission System
Model NO. XYT-1U-1612

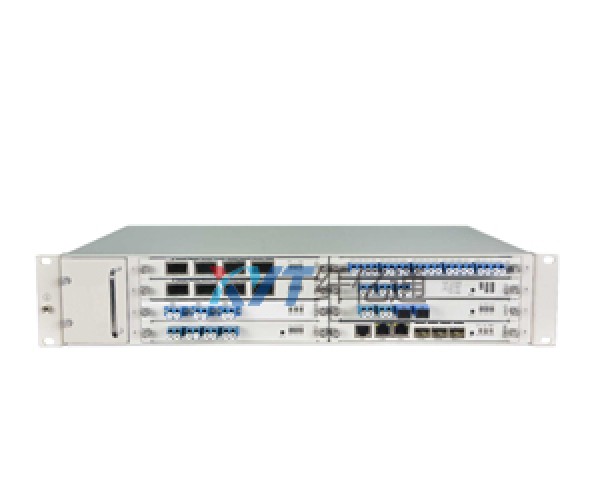

2U WDM Transmission System
