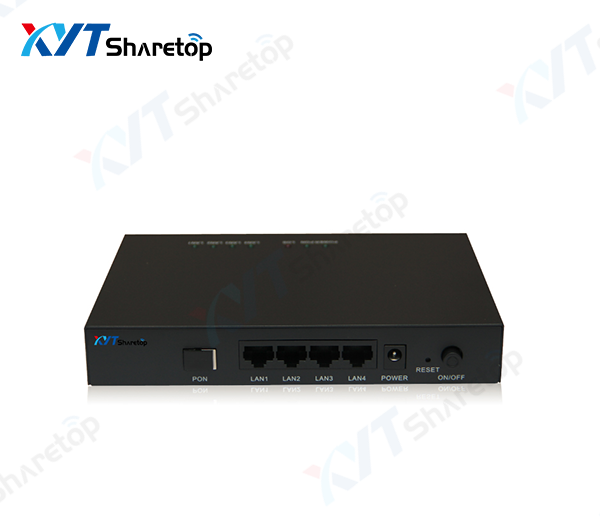

4 RJ45 GPON-ONU

Quantity:

size of product

Attribute	GPON 4 port ONU
Port	Four fixed 10/100/1000BASE-T
Port	1 fixed PON port
System capacity	Maximum 1:64 optical ratio
PON Port	up 1.25G.Downside-symmetric 2.45Gbps transmission rate
	High sensitivity optical receiver:, not less than-30dBm
	Security: The ONU authentication mechanism
	Network coverage radius: 60 km
Physical dimensions	12517528MM
Physical dimensions	Installation: Desktop type/wall mount
Weight	<0.5kg
Environmental requirements	Working environment: -40℃~65℃; 10%~90% without condensation
Environmental requirements	Storage environment: -40℃~80℃; 5%~95% condensation-free
Power supply	Input voltage: AC100~240V, with an input frequency of 47~63Hz
Power supply	Input current: 1A/230V

Business characteristics

Vocational work	Realize
GPON characteristic	Compliance with the ITU-T G.984 The GPON standard
	Support for GEM packaging mode
	Support for DBA (Dynamic Bandwidth Assignment)
	Support for 40 T-CONT and 256 GEM Ports
	Support for the ClassB+ optical power budget
	Hold a VLAN-to-GEM Port mapping mode
	Support for FEC (Forward Error Correction)
	Implementing the Embedded OAM (Operations, Administration and Maintenance), PLOAM (Physical Layer OAM), OMCI
	Support for downside 128-bit AES (Advanced Encryption Standard) encryption
	Support the drop of electricity alarm
VLAN	Support for port-based VLAN and IEEE 802.1Q VLAN
	Support for a full range of VID and PVID
	Supports setting tag properties based on port+VLAN
Radio storm suppression	The number of broadcast messages can be set
STP	IEEE 802.1d/1s/1w generation tree protocol
Port aggregation	support
Bandwidth control	Support 64K to 100M, send and receive control respectively
acoustic image	Support for ports mirror function
QoS	Support for a port/802.1p/IP-TOS-based priority
QoS	Support for Level4 priority control
Upgrade	Support for Xmodem, TFTP protocol upgrades
Manage	support GN.Link Cluster Management and Remote Upgrade (Client-side)
	Support for the Telnet remote configuration
	Support for SNMP management
	Support for WEB management
Safety features	Support the administrator's user password centralized authentication
	Support ports lock and limit the number of MAC addresses per port
	support 802.1x
Maintenance	Support for debugging information output
	support PING
	Support system logs
