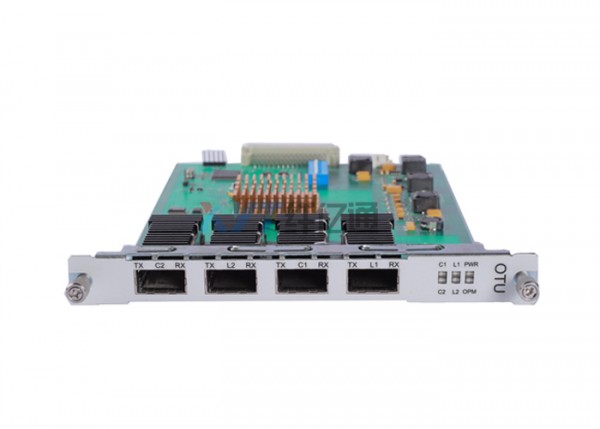

2.5G OTU interface card
2.5G OTU interface card

2.5G OTU interface card

Model NO.
XYT-1600-OTU
Quantity:

 - Specification -

system parameter

Transmission rate ：155Mbps～2.5Gbps

Transmission distance  [km]

2

40

80

120

Center   wavelength [nm]

850/1310

CWDM/DWDM

CWDM/DWDM

CWDM/DWDM

SMSR [dB]

-

30

30

30

output   power [dBm]

-3~-10

-5~0

0~5

0~5

Extinction   ratio [dB]

8.2

8.2

8.2

8.2

Receive laser

PIN

PIN

APD

APD

Mini  load [dBm]

-3

0

-9

-9

Receive sensitivity [dBm]

-18

-22

-26

-32

Optical Path   Penalty [dB]

1

1

1

2

Maximum return   loss[dB]

-27

-27

-27

-27
