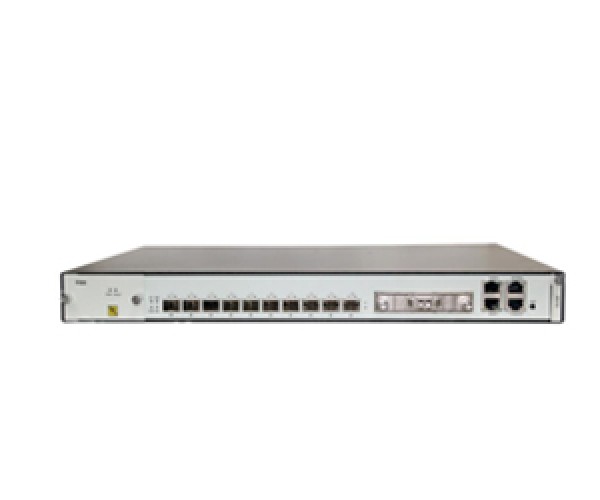

100G OTN

characteristics

Description

Chassis size(Height*Width *Depth)

440mm*350mm*44mm

Power supply

1＋1  power supply back up

AC input :100~240V, 47~63Hz

DC input : -40V~  -72V

Maximum power consumption

130W （Coherent color light CFP）

110W （White light CFP）

Client side interface

10 x10G SFP+ port（10GE LAN/WAN，STM-64/OC-192， FC8G，OTU2，OTU2e

System side interface

1 x100G  CFP port （support coherent color light CFP，4x25G DWDM CFP or white light CFP）；

10G SFP+ port base on  DWDM/CWDM

Working environment

Working temperature: 0°C～45°C

Storage temperature: -40°C to 70°C

Relative humidity: 10% to 90%, non-condensing

Specification

Description

System-side signals and multiplexing structure

100G grey CFP: OTU4 <->ODU4<-> ODU2 or ODU2e or ODUflex

100G DWDM CFP: OCh <->OTU4<->ODU4<-> ODU2 or ODU2e or ODUflex

10G grey SFP+: OTU2/OTU2e <->ODU2/ODU2e

10G WDM SFP+: OCh <->OTU2/OTU2e<->ODU2/ODU2e

Client side signaling and mapping

OC-192/STM-64 (via AMP or BMP) <->ODU2

10GBASE-R (via BMP) <->ODU2e

10GBASE-R (via GFP-F) <->ODU2

10GBASE-R (via GFP-F extended payload with preamble) <->ODU2

FC8G (via BMP) <->ODUflex (HW ready)

100G port FEC mode

100G OTU4: G.709 Regular FEC

100G coherent OCh: Soft-Decision FEC

10G port FEC mode

Regular FEC (G.709)

I.4 Super FEC (G.975.1)

I.7 Super FEC (G.975.1)

In-band management

GCC0 on OTU4

GCC1 or GCC2 or GCC1+2 on ODU4

GCC0 on OTU2/2e

GCC1 or GCC2 or GCC1+2 on ODU2/2e

Out-of-band management

Management Ethernet port

Transmission protection

SNC/N

SNC/I

Network Management System

SNMP based NMS
