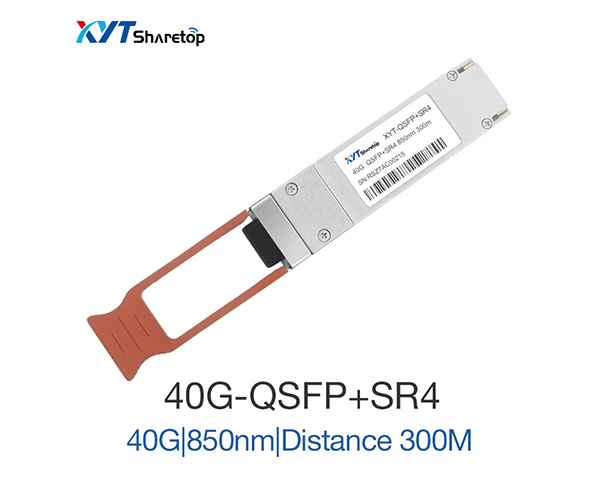

QSFP+ 40G SR4 100m
QSFP+ 40G SR4 100m

QSFP+ 40G SR4 100m

Model NO.
XYT-QSFP+ -40G-SR-02
Quantity:

 - Specification -

Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)

Parameter

Symbol

Min.

Typ

Max.

Unit

Note

Transmitter

Operating Wavelength

λ

840

850

860

nm

Ave. output power (Enabled)

PAVE

-7.5

+2.5

dBm

Difference in launch power

between any two lanes (OMA)

DL

4

dB

Extinction Ratio

ER

3

dB

Peak power, each lane

PP

4

dBm

Dispersion penalty, each lane

TDP

3.5

dB

Average launch power of OFF

transmitter, each lane

POFF

-30

dB

Eye Mask coordinates:

X1, X2, X3, Y1, Y2, Y3

SPECIFICATION VALUES

0.23, 0.34, 0.43, 0.27, 0.35, 0.4

Hit Ratio =

5x10-5

Receiver

Operating Wavelength

λc

840

850

860

nm

Stressed receiver sensitivity in OMA(OLSQ854XM-CDS1)

PSEN1

-5.4

dBm

3

Stressed receiver sensitivity in OMA(OLSQ854XM-CDS3)

PSEN2

-7.5

dBm

3

Average Receive Power,each lane

PAVE

-11

+2.4

dBm

Receiver Reflectance

Rrx

-12

dB

LOS Assert

Pa

-30

dBm

LOS De-assert

Pd

-9

dBm

LOS Hysteresis

Pd-Pa

0.5

dB

Notes:

1. Measured with conformance test signal at TP3 for BER = 10-12 Receiver Characteristics

Ordering Information

Part Number

Description

XYT-QSFP+_40G_SR4_100m

QSFP+,40Gb/s, 850nm, 100m, 0~70℃ MPO

XYT-QSFP+_40G_SR4_100m

QSFP+,40Gb/s, 850nm, 300m, 0~70℃ MPO

Product Features

●Supports 1.06 to 10.5Gb/s bit rates per Channel

●Four-Channel ,1x12 MPO receptacle

●Hot pluggable QSFP+ form factor

●VCSEL 850nm array Technology

●Applicable for 100m&300m on OM3 MMF,150m&400m on OM4 MMF.

●Built-in digital diagnostic functions

●Low power consumption, < 1.5W

●Unretimed XLPPI electrical interface

●Operating case temperature: -5°C to 80 °C

Applications

●40GBASE-SR4 40G Ethernet

●Datacom/Telecom switch & router connections

●Data Aggregation and Backplane Applications

●Proprietary Protocol and Density Applications

●Infiniband transmission at 4CH SDR, DDR and QDR

●Other optical links
