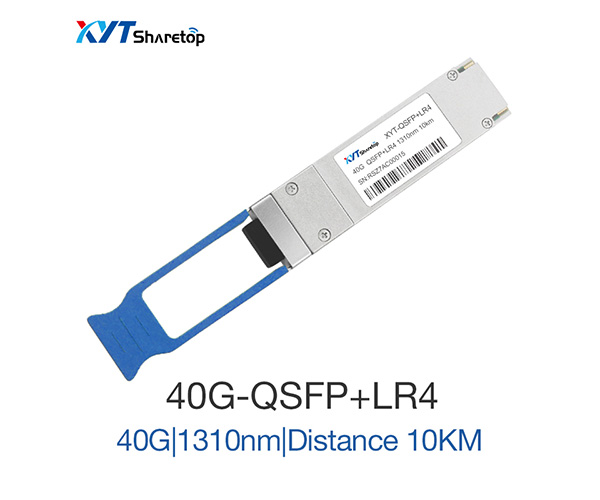

QSFP+ 40G LR4 10Km
QSFP+ 40G LR4 10Km

QSFP+ 40G LR4 10Km

Model NO.
40G QSFP+ 1310nm 10KM
Quantity:

 - Specification -

Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)

Parameter

Symbol

Min.

Typ

Max.

Unit

Note

Transmitter

Operating Wavelength

λc

1270

nm

1290

1310

1330

Ave. output power

PAVE

-7

+2.3

dBm

Difference in launch power

between any two lanes (OMA)

DL

4

dB

Extinction Ratio

ER

3.5

dB

Peak power, each lane

PP

4

dBm

Dispersion penalty, each lane

TDP

3.5

dB

Average launch power of OFF

transmitter, each lane

POFF

-30

dB

Eye Mask coordinates:

X1, X2, X3, Y1, Y2, Y3

SPECIFICATION VALUES

0.23, 0.34, 0.43, 0.27, 0.35, 0.4

Hit Ratio =

5x10-5

Receiver

Operating Wavelength

λc

1264.5

1277.5

nm

1284.5

1297.5

1304.5

1317.5

1324.5

1337.5

Stressed receiver sensitivity in OMA(OLSQ854XM-CDS1)

PSEN1

-11.5

dBm

3

Average Receive Power,each lane

PAVE

-11

+2.4

dBm

Receiver Reflectance

Rrx

-12

dB

LOS Assert

Pa

-30

dBm

LOS De-assert

Pd

-12

dBm

LOS Hysteresis

Pd-Pa

0.5

dB

Notes:

1. Measured with conformance test signal at TP3 for BER = 10-12 Receiver Characteristics

Ordering Information

Part Number

Description

XYT--QSFP+_40G_LR4_10Km

QSFP+,40Gb/s, CWDM wavelength 1270~1330nm(4x10G) 10Km, 0~70℃ LC

Product Features

●Supports 41.2Gb/s bit rates

●Duplex LC receptacles

●Hot pluggable QSFP+ form factor

●Uncooled 4x10Gb/s CWDM transmitter

●Applicable for10Km on Single Mode Fiber(SMF).

●Built-in digital diagnostic functions

●Low power consumption, < 3.5W

●Unretimed XLPPI electrical interface

●Operating case temperature: 0°C to 70 °C

Applications

●40GBASE-LR4 40G Ethernet

●Infiniband QDR and DDR interconnects

●Client-side 40G Telecom connections

●Other optical links
