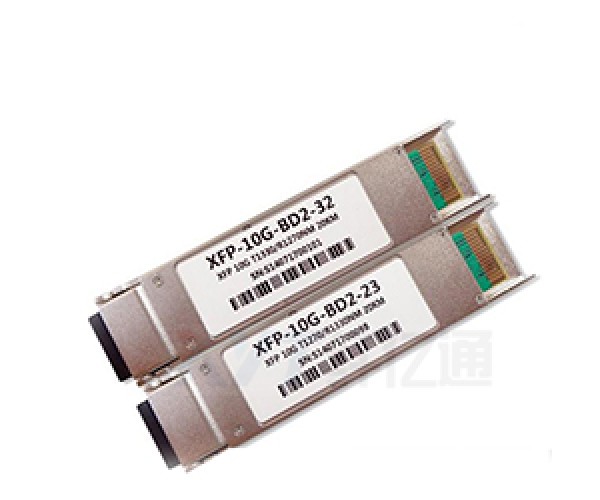

10G XFP BIDI 60KM Optic Module
10G XFP BIDI 60KM Optic Module

10G XFP BIDI 60KM Optic Module

Model NO.
10Gb/s 60km BIDI XFP Optical Transceiver
Quantity:
 - Specification -
Table 1-Optical and Electrical Characteristics
ParameterSymbolMinTypicalMaxUnitNotes
Transmitter
Centre Wavelengthλc126013101360nm
Spectral Width(RMS)?λ4nm
Average Output PowerPout-9-3dBm1
Extinction RatioER9dB
Optical Rise/Fall Time(20%~80%)tr/tf0.26ns
Data Input Swing DifferentialVIN4001800mV2
Input Differential ImpedanceZIN90100110Ω
TX DisableDisable2VccV
Enable00.8V
TX FaultFault2VccV
Normal00.8V
Receiver
Centre Wavelengthλc12601580nm
Receiver Sensitivity-23dBm3
Receiver Overload-3dBm3
LOS De-AssertLOSD-24dBm
LOS AssertLOSA-35dBm
LOS Hysteresis14dB
Data Output Swing DifferentialVout4001800mV4
LOSHigh2VccV
Low0.8V
NOTE:
1.The optical power is launched into SMF.
2.PECL input,internally AC-coupled and terminated.
3.Measured with a PRBS 27-1 test pattern@1250Mbps,BER ≤1×10-12.
4.Internally AC-coupled.

Parameter



TypeRateWavelengthTransmition distanceTransmitter powerReceiver  sensitivityInterfaceOperating              temperature
SFP10G1270/1330nm10M-1~-5≤-14.4LC0-70℃
10G1270/1330nm40KM0~5≤-15.8LC0-70℃
10G1270/1330nm60KM0~5≤-20LC0-70℃

Features
1.Hot-pluggable XFP footprint
2.Supports 9.95Gb/s to 11.3Gb/s
3.CWDM DFB Laser and PIN receiver
4.RoHS-6 Compliant(lead-free)
5.Power dissipation<2.0W
6.Temperature range:0°C to 70°C
7.Single power supply:3.3V
8.Maximum link length of 10km
9.Full Duplex LC connector
10.No Reference Clock required
11.Built-in digital diagnostic functions
12.Standard bail release mechanism

Applications
10GBASE-LR/LW 10G Ethernet
10G Fiber Channel
SONET OC-192 SR-1&SDH STM I-64.1
