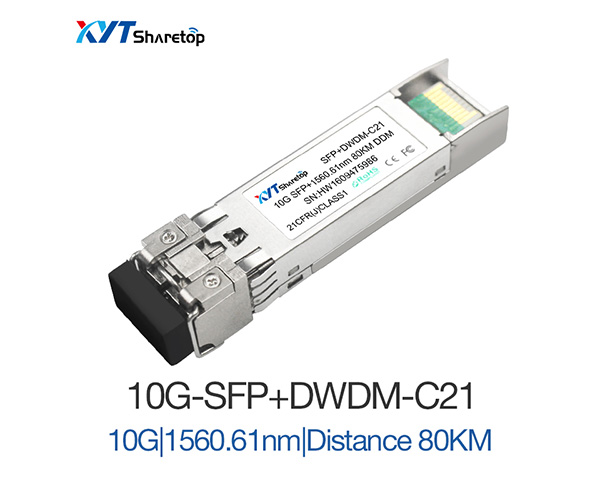

10G DWDM SFP+ 80km Transceiver
10G DWDM SFP+ 80km Transceiver

10G DWDM SFP+ 80km Transceiver

Model NO.
XYT-DWDM-SFP＋
Quantity:

 - Specification -
 Optical Characteristics

ParameterSymbolMinTypMaxUnitNOTE
Transmitter
Average Optical PowerPout-13dBm1
Optical Wavelengthλcλc -0.1λc +0.1nm
Center Wavelength Spacing100GHz2
Optical Extinction RatioER6dB
Transmitter and Dispersion PenaltyTDP3.0dB
Side mode Suppression ratioSMSR30dB
Average Launch Power(Laser Off)Poff-30dBm
Output Eye MaskCompliant with IEEE 802.3ae
Receiver
Rx SensitivityRSENS-15.8dBm3
Input Saturation Power (Overload)Psat0.5dBm
Wavelength RangeλC12701610nm
LOS De -AssertLOSD-19dBm
LOS AssertLOSA-28dBm
LOS Hysteresis0.5dB
  Notes:
1. Output power is power coupled into a 9/125 mm single-mode fiber.
2. Corresponds to approximately 0.8 nm.
3. Measured with a PRBS 231-1 test pattern, @10.325Gb/s, BER<10-12 .




Ordering information
TypeRateWavelengthTransmission Distance  Transmitter     Power
 		Receiver sensitivityInterface     Operating           temperature
CWDM SFP+10G1270-1450nm10KM-1~-5≤-14.4LC0-70℃
10G1470-1610nm40KM-1~-3≤-15.8LC0-70℃
10G1470-1610nm80KM0~-4≤-23LC0-70℃
10GC20-C6040KM-1-3≤-15.8LC0-70℃
10GC20-C6080KM0-4≤-23LC0-70℃

FEATURES

Up to 11.1Gbps Data Links

Up to 80km transmission on SMF

DWDM EML Laser and APD receiver

Metal enclosure, for lower EMI

2-wire interface with integrated Digital Diagnostic monitoring

Hot-pluggable SFP+ footprint

Specifications compliant with SFF 8472

Compliant with SFP+ MSA with LC connector

Single 3.3V power supply

Case operating temperature range:0°C to 70°C

Power dissipation < 1.5W

APPLICATIONS

10GBASE-ZR/ZW

80 km 10G Fiber Channel

10G Ethernet with FEC
