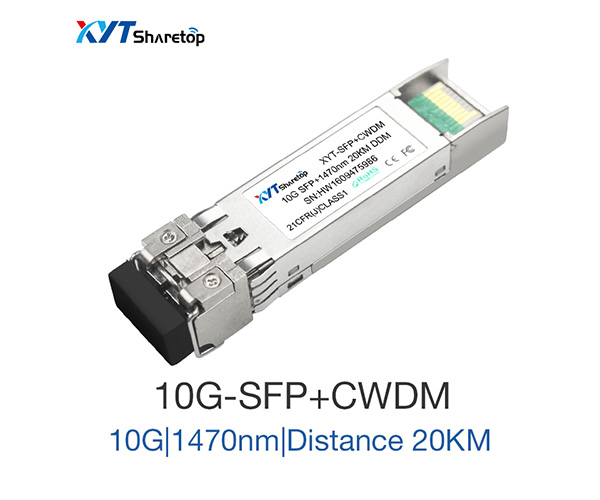

10G CWDM SFP+ module 20km
10G CWDM SFP+ module 20km

10G CWDM SFP+ module 20km

Model NO.
XYT-SFP＋CWDM-20
Quantity:
 - Specification -
Table 1-Optical and Electrical Characteristics
ParameterSymbolMinTypicalMaxUnitNotes
Transmitter
Centre Wavelengthλc126013101360nm
Spectral Width(RMS)?λ4nm
Average Output PowerPout-9-3dBm1
Extinction RatioER9dB
Optical Rise/Fall Time(20%~80%)tr/tf0.26ns
Data Input Swing DifferentialVIN4001800mV2
Input Differential ImpedanceZIN90100110Ω
TX DisableDisable2VccV
Enable00.8V
TX FaultFault2VccV
Normal00.8V
Receiver
Centre Wavelengthλc12601580nm
Receiver Sensitivity-23dBm3
Receiver Overload-3dBm3
LOS De-AssertLOSD-24dBm
LOS AssertLOSA-35dBm
LOS Hysteresis14dB
Data Output Swing DifferentialVout4001800mV4
LOSHigh2VccV
Low0.8V


Ordering information

TypeRateWavelengthTransmission Distance  Transmitter     Power
 		Receiver sensitivityInterface     Operating           temperature
CWDM SFP+10G1270-1450nm10KM-1~-5≤-14.4LC0-70℃
10G1470-1610nm40KM-1~-3≤-15.8LC0-70℃
10G1470-1610nm80KM0~-4≤-23LC0-70℃
10GC20-C6040KM-1-3≤-15.8LC0-70℃
10GC20-C6080KM0-4≤-23LC0-70℃



 FEATURES

Up to 11.1Gbps Data Links

Up to 40km transmission on SMF

Power dissipation < 1.5W

Uncooled CWDM DFB Laser and PIN receiver

Metal enclosure, for lower EMI

2-wire interface with integrated Digital Diagnostic monitoring

Hot-pluggable SFP+ footprint

Specifications compliant with SFF 8472

Compliant with SFP+ MSA with LC connector

Single 3.3V power supply

Case operating temperature range:0°C to 70°C

APPLICATIONS

10GBASE-ER/EW & 10G Ethernet

STANDARD

Compliant to 802.3ae 10GBASE-ER/EW

Compliant to SFF-8431

RoHS Compliant.
