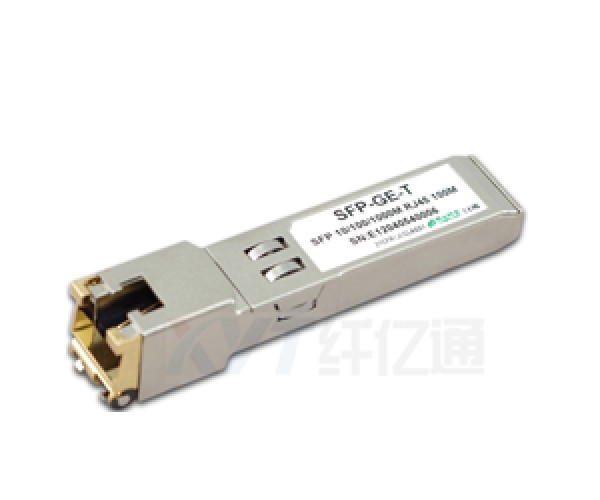

10/100/1000M Copper SFP RJ45

Model NO.: Copper SFP Transceiver

Quantity:

Product Description
Application Description

- Specification -

Table 1-Optical and Electrical Characteristics

Pin	Signal Name	Description	Plug Seq.	Notes
1	VEET	Transmitter Ground	1
2	TX FAULT	Transmitter Fault Indication	3	Note1
3	TX DISABLE	Transmitter Disable	3	Note2
4	MOD_DEF(2)	SDA Serial Data Signal	3	Note3
5	MOD_DEF(1)	SCL Serial Clock Signal	3	Note3
6	MOD_DEF(0)	TTL Low	3	Note3
7	Rate Select	Not Connected	3
8	LOS	Loss of Signal	3	Note 4
9	VEER	Receiver ground	1
10	VEER	Receiver ground	1
11	VEER	Receiver ground	1
12	RX-	Inv.Received Data Out	3	Note 5
13	RX+	Received Data Out	3	Note 5
14	VEER	Receiver ground	1
15	VCCR	Receiver Power Supply	2
16	VCCT	Transmitter Power Supply	2
17	VEET	Transmitter Ground	1
18	TX+	Transmit Data In	3	Note 6
19	TX-	Inv.Transmit Data In	3	Note 6
20	VEET	Transmitter Ground	1

Parameters

Product	Transmission Rate	Wavelength	Transmission distance	Transmitter power	Receiver sensitivity	Interface
1000base-copper	100M	-	100m	-	-	RJ45
	155M	-	100m	-	-	RJ45
	155M	-	100m	-	-	RJ45

Ordering information

Part No.	Form Factor	Data Rate	Distance	Wavelength	Connector	DDM
XYT-00854G-S5x(D)	SFP	4.25G	500m	850nm	LC	Y
XYT-00314G-L1xD	SFP	4.25G	10km	1310nm	LC	Y
XYT-00314G-L3xD	SFP	4.25G	30km	1310nm	LC	Y
XYT-00554G-L4XD	SFP	4.25G	40km	1550nm	LC	Y
XYT-003148-L2x(D)	SFP	2.5G	20km	1310nm	LC	Y
XYT-008548-S3x(D)	SFP	2.5G	300m	850nm	LC	Y
XYT-005548-L8x(D)	SFP	2.5G	80km	1550nm	LC	Y
XYT-003148-L4x(D)	SFP	2.5G	40km	1310nm	LC	Y
XYT-005548-12CD	SFP	2.5G	120km	1550nm	LC	Y
XYT-008524-S5x(D)	SFP	1.25G	550m	850nm	LC	Y
XYT-003124-L2x(D)	SFP	1.25G	20km	1310nm	LC	Y
XYT-005524-L8C(D)	SFP	1.25G	80km	1550nm	LC	Y
XYT-003124-L4x(D)	SFP	1.25G	40km	1310nm	LC	Y
XYT-005524-12C(D)	SFP	1.25G	120km	1550nm	LC	Y
XYT-003112-L2x(D)	SFP	622M	20km	1310nm	LC	Y
XYT-003112-L4x(D)	SFP	622M	40km	1310nm	LC	Y
XYT-008503-02C(D)	SFP	155M	2km	850nm	LC	Y
XYT-003112-L8x(D)	SFP	622M	80km	1550nm	LC	Y
XYT-005503-L8CD	SFP	155M	80km	1310nm	LC	Y
XYT-003103-L2C(D)	SFP	155M	20km	1310nm	LC	Y
XYT-003103-L4C(D)	SFP	155M	40km	1310nm	LC	Y
XYT-005503-12CD	SFP	155M	120km	1550nm	LC	Y

Features
1．Hot-pluggable SFP footprint
2．Extended case temperature range(0°C to+70°C)
3．Fully metallic enclosure for low EMI
4．Compact RJ-45 connector assembly
5．It supports RX_LOS(Loss of Signal)function
6．Compatible with IEEE802.3u
7．Access to physical layer IC via 2-wire serial bus
8．A 10/100BASE-TX/100BASE-FX converter

Applications
1．Switch to Switch Interface
2．Gigabit Ethernet
3．Switched Backplane Applications
4．Router/Server Interface
5．Other Optical Links
