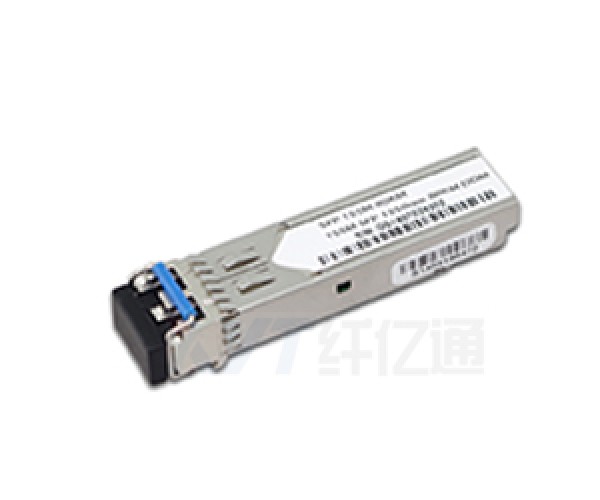

155M SFP optoc transceiver 10KM
155M SFP optoc transceiver 10KM

155M SFP optoc transceiver 10KM

Modèle
XYT-155M-SFP-XX
Quantité:

 - Specification -

Table 1-Optical and Electrical Characteristics

ParameterSymbolMinTypicalMaxUnitNotes
Transmitter
Centre Wavelengthλc126013101360nm
Spectral Width(RMS)?λ4nm
Average Output PowerPout-9-3dBm1
Extinction RatioER9dB
Optical Rise/Fall Time(20%~80%)tr/tf0.26ns
Data Input Swing DifferentialVIN4001800mV2
Input Differential ImpedanceZIN90100110Ω
TX DisableDisable2VccV
Enable00.8V
TX FaultFault2VccV
Normal00.8V
Receiver
Centre Wavelengthλc12601580nm
Receiver Sensitivity-23dBm3
Receiver Overload-3dBm3
LOS De-AssertLOSD-24dBm
LOS AssertLOSA-35dBm
LOS Hysteresis14dB
Data Output Swing DifferentialVout4001800mV4
LOSHigh2VccV
Low0.8V



Ordering information
Part NumberData raterateWavelengthDistanceTransmitter PowerReceiver
Sensitivity		Connector
XYT-155M-SX155Mb/s850nm550M-3~-8dBm≤-24dBmLC
XYT-155M-LX155Mb/s1310nm10KM-8~-12dBm≤-32dBmLC
XYT-155M-EX155Mb/s1310nm40KM-3~-8dBm≤-32dBmLC
XYT-155M-ZX155Mb/s1310nm80KM0~-3dBm≤-34dBmLC

PRODUCT FEATURES

Up to 155Mb/s data links

FP laser transmitter and PIN photo-detector

Up to 10km-120KM on 9/125µm SMF

Hot-pluggable SFP footprint

Duplex LC/UPC type pluggable optical interface

Low power dissipation

Metal enclosure, for lower EMI

RoHS compliant and lead-free

Single +3.3V power supply

Compliant with SFF-8472

Case operating temperature

       Commercial: 0°C to +70°C

       Extended: -10°C to +80°C

       Industrial: -40°C to +85°C

APPLICATIONS

Switch to Switch Interface

Fast Ethernet

Switched Backplane Applications

Router/Server Interface

Other Optical Links
